High rates achieved with this centrifugal sifter

Kason

Kason

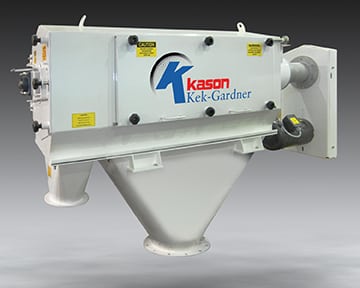

The new high-capacity centrifugal sifter Model K1350 (photo) removes oversize foreign matter and agglomerates from on-size material at rates up to 100 ton/h. The K1350 features an easy-to-clean cantilevered three-bearing shaft design with bearings at the motor end of the shaft and on the exterior of the discharge end cover, providing maximum support for heavy loads. When the end cover door is opened, the shaft cantilevers on a third in-board bearing, allowing the screen cylinder and helical paddle/feed screw assembly to slide freely from the shaft end for rapid, thorough wash down. An exclusive “forward and lift” access door on gas struts improves interior access for cleaning, inspection and maintenance. The sifter can be configured for gravity-fed applications, or dilute-phase positive- or negative-pressure in-line pneumatic systems. Hall 4A, Stand 525 — Kason Corp., Millburn, N.J.

www.kason.com
