New 80-GHz compact radar transmitters for level
By Mary Page Bailey and Gerald Ondrey |

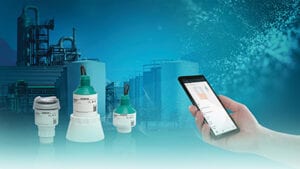

Two new models have been added to this company’s Sitrans LR100 series of 80-GHz radar transmitters (photo). These high-frequency, compact transmitters deliver reliable measurements even in challenging environments. Sitrans LR140 features 4–20-mA simplicity and is configured via Bluetooth wireless technology and the Sitrans mobile IQ App. Sitrans LR150 offers a four-button user interface on an optional human-machine interface (HMI) for configuration or monitoring. Configuration is also available via Bluetooth wireless technology and the Sitrans mobile IQ App or remotely with 4–20-mA HART using Simatic PDM. The easy-to-use Quick Start Wizard will have the transmitter operational in minutes. Custom microchip technology delivers fast response and extremely high sensitivity to detect even the weakest of signals. — Siemens AG, Munich, Germany
The new Sitrans LT500 level, flow and pump controllers (photo) are suitable for radar and ultrasonic transmitters or any other…
Accurate interface level measurement is crucial to optimizing separation processes. Today’s guided wave radar technologies make it possible to measure…
Ambient temperature swings handled by this DP transmitter For tanks located outdoors, ambient temperature conditions can interfere with level…
The DJ level switch (photo) provides high- or low-point level detection of bulk solids. The DJ detector operates successfully on…
The FWR30 is this company’s first cloud-connected radar level sensor, and is said to be the world’s first 80-GHz wireless…
