New angle seat valves for hygienic production

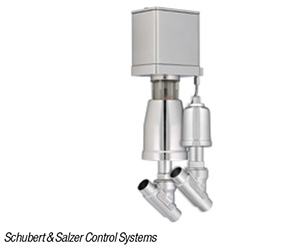

This company is extending its range of sterile and aseptic valves with two new types of hygienic angle seat valves. The shut-off valve type 7015 and the control valve type 7025 with integrated digital positioner (photo) are specially adapted for use in the production of food and beverages. These valves are used, among other things, to control and shut off product streams, drinking water, CO2 and nitrogen, as well as sterile steam and sterile air. All wetted stainless-steel surfaces of the dead-space-optimized valve construction can be manufactured with a surface roughness of less than Ra 0.8 μm. The new valve types in the nominal sizes DN 15–50 and the pressure class PN 40 are suitable for media with temperatures from –30 to 170°C and in special versions from –50 to 180°C. All wetted plastics are FDA-compliant and conform to the EC Regulation 1935/2004, as well as the EU Plastic Regulation 10/2011. — Schubert & Salzer Control Systems GmbH, Ingolstadt, Germany
