A new design for cost-effective flow measurement

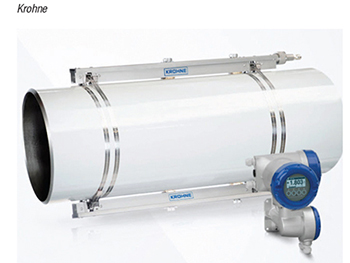

The new Optisonic 6300 V2 ultrasonic flowmeter features a stationary, clamp-on design. The Optisonic 6300 V2 allows users to measure flow anywhere necessary, all while processes continue operating. New to the Optisonic 6300 V2 are the following: the ability to handle a viscosity range of up to 200 cSt; there is no need for re-greasing due to solid coupling material; a next-generation signal converter for enhanced application range; Namur NE107 diagnostics; and integrated thermal energy calculation. The device is suitable for diameters ranging from½ to 160 in. It handles a process temperature range of –40 to 392°F (–40 to 200°C). The flowmeter is constructed as a submersible stainless-steel sensor rail (IP 68/NEMA 6P). For the complete diameter range, the Optisonic 6300 V2 offers flexible configurations: single and dual ultrasonic sensors; wall and field signal converter housing; and V-, W-, Z-, and X-mode measurement configuration. — Krohne, Inc., Beverly, Mass.
