A patented coupling technology for diaphragm seal systems

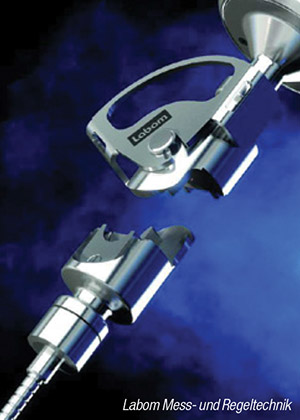

The patented REconnect fast-coupling device (photo) provides simple and safe decoupling and recoupling of diaphragm seal systems. A REconnect device is installed between the measuring device and the process connection to facilitate handling when measuring systems are mounted with a capillary, such as on vessels with large heights, when there is restricted space or in plants that are difficult to access. Operated by a special lock, it makes safe and leakage-free decoupling of diaphragm seal systems possible without affecting oil volumes and without loss of oil or intake of air. This means that the process no longer has to be opened to replace or calibrate measuring instruments, because the diaphragm seal remains connected to the process. Subsequently, the measuring device and diaphragm seal are just as easily recoupled and the plant can immediately be put back into operation. This special separation process makes it possible to repeat the procedure as many times as necessary. REconnect also offers a solution for mobile vessels making it unnecessary to dismantle all the measuring systems, while autoclaving vessels, for example. Hall 11.1 Booth F46 — Labom Mess- und Regeltechnik GmbH, Hude, Germany
