Comment Heat Transfer

A pair of evaporators for well plates

By Gerald Ondrey |

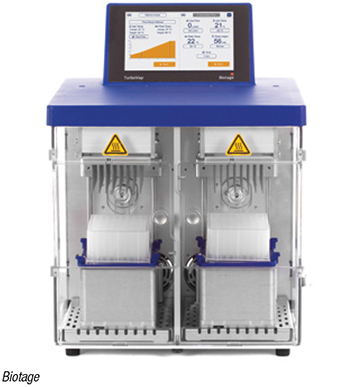

The TurboVap 96 Dual (photo) is a second-generation well plate evaporator system with two separate, and independently controlled evaporation compartments. The TurboVap 96 Dual has been designed to support enhanced well-plate evaporation within the sample-preparation workflow. With its unique two-in-one functionality, users can run the same method on two plates simultaneously, or two independent evaporations, essentially doubling throughput. The capability to act as two single units and a dual enables laboratories an opportunity to balance their evolving sample throughput needs. TurboVap 96 Dual is dedicated to the evaporation of solvents in 24, 48, or 96 well-plate-array formats. The system can evaporate solvent levels from microliters up to 10 mL per well. The system applies user controlled heated nitrogen from the top, while simultaneously heating the bottom of the well plate by convection. Evaporated solvent vapors are contained and evacuated under negative pressure. — Biotage GB Ltd., Ystrad Mynach, U.K.

www.biotage.com
